Whether it is for creative displays at commercial exhibitions or image promotion of outdoor landmarks, LED Sphere Displays bring users a brand-new way of information transmission and experience with their highly impactful visual effects. Below, starting from the core characteristics of LED Sphere Displays, we will conduct an in-depth analysis of the differences between their indoor and outdoor applications, diverse application scenarios, price composition, selection logic for sizes and models, as well as the professional support that Apexls can provide to users in this field.
I. LED Sphere Display: A "Panoramic Display Expert" Breaking the Limitations of Flat Screens
An LED Sphere Display is a display device with a spherical basic shape, where LED lamp beads are evenly distributed on the spherical surface. Its core advantage lies in 360° panoramic display without dead angles, allowing viewers from different directions to receive complete and clear image information, thus avoiding the "viewing blind spot" problem of traditional flat screens. At the same time, LED Sphere Displays feature high brightness, high contrast, and high refresh rate, which can present delicate color transitions and dynamic images. Whether it is static graphics and text or dynamic videos, they can achieve smooth and realistic display effects.
In terms of structure, an LED Sphere Display usually consists of a spherical frame, LED display modules, a control system, a power supply system, and a heat dissipation system. Among them, the LED display module is the core component, and its lamp bead density (pixel pitch) directly determines the display clarity; the control system is responsible for receiving and processing signals to ensure the synchronized and stable playback of images; the heat dissipation and power supply systems provide guarantees for the long-term operation of the device, which is particularly crucial in high-load usage scenarios.
II. Indoor vs. Outdoor LED Sphere Displays: Differences Stem from "Environmental Requirements"
Although the core principle is the same, indoor and outdoor LED Sphere Displays have clear distinctions in design and performance parameters due to differences in usage environments. When making a selection, it is necessary to accurately match the scenario requirements to avoid usage problems caused by "mismatch".
1. Brightness and Contrast: Adapting to Ambient Light
Outdoor LED Sphere Displays: They need to cope with complex weather conditions such as strong light, heavy rain, high temperature, and low temperature, so they have extremely high brightness requirements (usually above 5000 nits) to ensure that the images are still clearly visible under direct sunlight. Meanwhile, the ambient light in outdoor environments is changeable, so the screen needs to have a function of automatically adjusting brightness to avoid the problem of "being hard to see" under strong light or "being too dazzling" under weak light.
Indoor LED Sphere Displays: The ambient light is relatively stable and weak, so the brightness does not need to be too high (usually 800-2000 nits). The focus is on improving the contrast ratio (generally ≥5000:1) to present more delicate color layers, which is suitable for close-range viewing (such as in exhibition halls and conference rooms).
2. Protection Level: Resisting Environmental Hazards
Outdoor LED Sphere Displays: The protection level is a key indicator, which needs to reach IP65 or above (IP65 means fully dust-proof and capable of resisting low-pressure water spraying). For some harsh environments (such as coastal and rainy areas), it needs to be upgraded to IP66. In addition, the screen surface needs to have UV resistance and corrosion resistance functions, and the frame material is mostly stainless steel or aluminum alloy to ensure no rusting or deformation during long-term outdoor use.
Indoor LED Sphere Displays: The environment is relatively clean and dry, so the protection level does not need to be too high, usually IP30 (preventing the entry of solid foreign objects larger than 2.5mm) is sufficient, and the focus is on dust prevention (to avoid dust accumulation affecting heat dissipation and display effects).
3. Heat Dissipation and Power Supply: Coping with Environmental Temperature Differences
Outdoor LED Sphere Displays: The screen is prone to heating in high temperatures in summer, so it is necessary to be equipped with an efficient heat dissipation system (such as fans, heat sinks, or even water cooling systems) to prevent the lamp beads from being damaged due to overheating. In low-temperature areas in winter, it needs to have a "low-temperature startup" function to avoid circuit failure caused by freezing at low temperatures. The power supply system needs to have lightning protection and surge protection to cope with the unstable power grid environment outdoors.
Indoor LED Sphere Displays: The environmental temperature difference is small, and the heat dissipation pressure is relatively low. Usually, natural heat dissipation or small fans are sufficient. The power supply system does not require complex protective measures, and the focus is on stable power supply to avoid image flickering.
III. Diverse Applications of LED Sphere Displays: Covering All Scenarios from Commercial to Public Welfare
With its unique visual shape and flexible adaptability, LED Sphere Displays have been widely used in various fields and have become an important tool to enhance the attractiveness of scenarios and transmit information.
1. Commercial Exhibitions and Marketing: Creating an "Eye-Catching Focus"

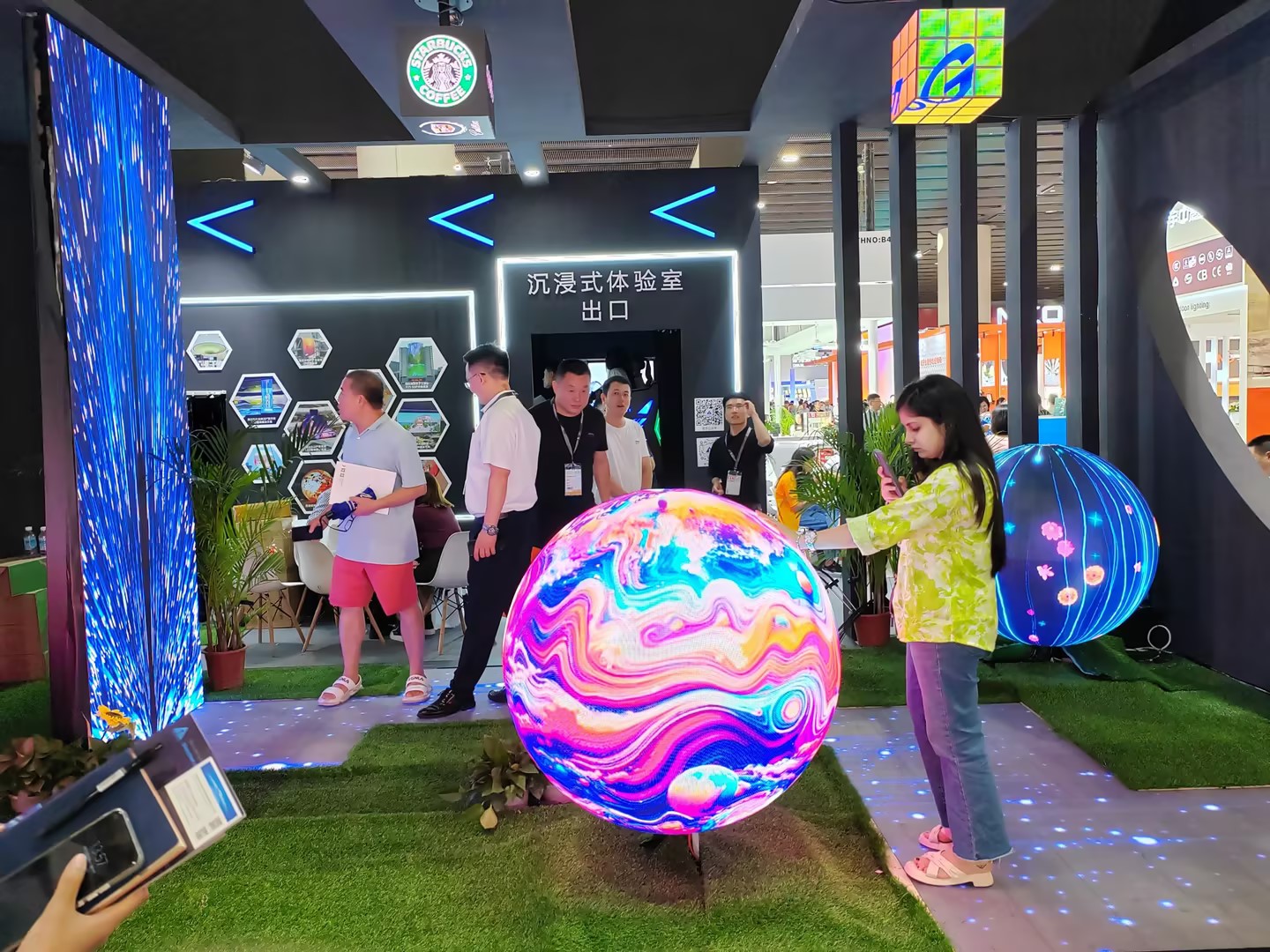

Exhibitions/Exhibition Halls: In various industry exhibitions (such as electronic exhibitions, auto shows, and cultural and creative exhibitions), LED Sphere Displays can be used as core display devices to play brand stories and dynamic product videos. The 360° display effect can quickly attract the attention of viewers and increase brand exposure. Some exhibition halls also combine interactive technologies to allow viewers to control the content of the Sphere Display through touch and gestures, enhancing the sense of experience.
Shopping Malls/Business Districts: LED Sphere Displays can be installed in the atriums and entrances of large shopping malls to play promotional activities, brand advertisements, and fashion short films, becoming a "visual landmark" of the business district. Some high-end shopping malls also combine holiday themes (such as the Spring Festival and Christmas) to customize exclusive images for the Sphere Displays, creating a festive atmosphere and driving customer flow.
2. Cultural Tourism and Public Spaces: Enriching "Scenario Experience"

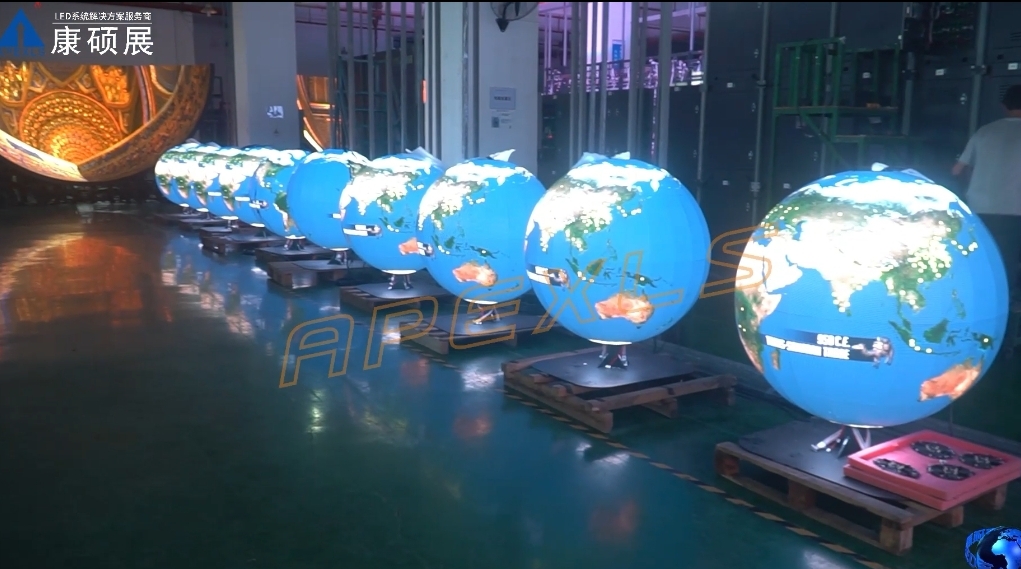

Science and Technology Museums/Museums: In science and technology museums, LED Sphere Displays can simulate the shapes of celestial bodies such as the Earth and planets, and cooperate with popular science videos to intuitively present knowledge about the universe and geography, making popular science more vivid. Museums can use Sphere Displays to restore historical scenarios (such as ancient starry skies and historical events), breaking the limitations of traditional display cabinets and enhancing the sense of immersion for viewers.
Outdoor Landmarks/Squares: Installing large LED Sphere Displays in city squares and landmark buildings (such as next to Ferris wheels and clock towers) can play city promotional videos, public welfare advertisements, and weather forecasts, becoming a "display window" for the city's image. During holidays, the Sphere Displays can also play holiday greetings and light shows simultaneously, becoming a "Internet-famous check-in spot" for citizens.
3. Enterprises and Office Spaces: Improving "Communication Efficiency"
Corporate Exhibition Halls/Conference Rooms: In corporate exhibition halls, LED Sphere Displays can display the corporate development history and core product advantages to convey the corporate strength to customers and partners. Installing small LED Sphere Displays in conference rooms can be used for video conferences and data visualization displays (such as 3D charts and dynamic reports), making communication more intuitive and efficient.
4. Entertainment and Performances: Creating an "Immersive Atmosphere"
Bars/KTVs/Theaters: Installing LED Sphere Displays above the dance floors of bars and KTVs to play dynamic light effects in line with the music rhythm can enhance the on-site atmosphere. Theaters and concert venues can use Sphere Displays as backgrounds to play performance images and special effect videos simultaneously, creating an immersive performance experience.
IV. Price of LED Sphere Displays: Affected by Multiple Factors Including "Specifications, Configuration, and Services"
The price of LED Sphere Displays is not a fixed value, but is affected by factors such as size, pixel pitch, configuration (such as control system and heat dissipation system), and installation services. The price range on the market varies greatly (from tens of thousands of yuan to millions of yuan).
1. Core Influencing Factors: Size and Pixel Pitch
Size: The size of an LED Sphere Display is measured by "diameter" (such as 1m, 3m, 10m in diameter). The larger the size, the more LED modules and frame materials are needed, and the higher the cost. For example, the price of small Sphere Displays (for indoor use) with a diameter of 1-3m is usually 50,000-200,000 yuan; the price of medium-sized Sphere Displays (for outdoor use) with a diameter of 5-10m may reach 500,000-1.5 million yuan; the price of large outdoor Sphere Displays with a diameter of more than 10m may exceed 2 million yuan.
Pixel Pitch: Pixel pitch (such as P2.5, P4, P6, with the unit of mm) refers to the distance between two adjacent LED lamp beads. The smaller the pitch, the higher the pixel density, the clearer the display, and the higher the cost. For example, for an indoor Sphere Display with a diameter of 3m, the price of P2.5 (pixel pitch of 2.5mm) may be 30%-50% higher than that of P4 (pixel pitch of 4mm), because P2.5 requires more lamp beads and modules.
2. Other Influencing Factors: Configuration and Services
Configuration Differences: Configurations such as the control system (whether it supports 4K resolution and multi-screen synchronization), the heat dissipation system (such as natural heat dissipation, fan heat dissipation, and water cooling heat dissipation), and the brand of lamp beads (such as domestic brands and imported brands) will all affect the price. For example, a control system supporting 4K display is 20%-30% more expensive than an ordinary 1080P system; a water cooling heat dissipation system is more than 50% more expensive than a fan heat dissipation system.
Installation and Services: The installation of LED Sphere Displays is relatively difficult (especially for large outdoor screens, which require the construction of scaffolding and hoisting equipment). The installation cost usually accounts for 10%-20% of the total price. In addition, the after-sales service (such as 1-year warranty, 3-year warranty) and later maintenance services (such as regular cleaning and fault repair) provided by the manufacturer will also affect the price. The longer the warranty period and the more complete the services, the higher the price.
V. Selection of LED Sphere Display Sizes and Models: "Matching on Demand" is the Key
When selecting the size and model of an LED Sphere Display, it is necessary to consider three core factors: the usage scenario, viewing distance, and budget. Avoid blindly pursuing "large size" or "high definition", which may lead to cost waste or poor user experience.
1. Size Selection: Based on Scenario Space and Viewing Distance
Indoor Scenarios:
Small spaces (such as conference rooms and small exhibition halls with an area of 20-50㎡): Sphere Displays with a diameter of 1-2m are suitable. The viewing distance is usually 3-5m to avoid a "sense of oppression" caused by an excessively large size.
Medium-sized spaces (such as large exhibition halls and shopping mall atriums with an area of 50-200㎡): Sphere Displays with a diameter of 2-5m are suitable. The viewing distance is 5-10m, which can not only ensure the visual impact but also not occupy too much space.
Large spaces (such as gymnasiums and large venues with an area of more than 200㎡): Sphere Displays with a diameter of more than 5m can be selected to meet the needs of long-distance viewing.
Outdoor Scenarios:
Small outdoor spaces (such as community squares and commercial streets with a viewing distance of 10-20m): Sphere Displays with a diameter of 3-5m are suitable.
Large outdoor spaces (such as city squares and scenic landmarks with a viewing distance of 20-50m): Sphere Displays with a diameter of 5-10m need to be selected.
Extra-large landmark scenarios (such as large theme parks and urban core business districts with a viewing distance of more than 50m): Customized Sphere Displays with a diameter of more than 10m can be used to become a regional visual focus.
2. Model Selection: Based on Pixel Pitch and Display Requirements
Close-range viewing (viewing distance of 3-5m): Models with small pixel pitches (such as P2.5 and P3) need to be selected to ensure clear images without graininess, which is suitable for indoor conference rooms and small exhibition halls.
Medium-range viewing (viewing distance of 5-15m): Models with medium pixel pitches (such as P4 and P5) can be selected to balance clarity and cost, which is suitable for large indoor exhibition halls and small outdoor squares.
Long-distance viewing (viewing distance of more than 15m): There is no need for too small pixel pitches. Choosing P6, P8, or even P10 is sufficient, which can not only ensure clarity at long distances but also reduce costs, and is suitable for large outdoor squares and landmark scenarios.
In addition, the model should also be selected based on content requirements: if it is necessary to play delicate dynamic videos and 3D special effects, it is recommended to choose a small pixel pitch (P2.5-P4); if only static graphics and text and simple animations are to be played, a larger pixel pitch (P5-P10) can be selected to reduce the budget.
VI. Apexls: Providing "Full-Cycle Solutions" for Your LED Sphere Displays
As a professional manufacturer in the LED display field, Apexls, relying on more than 10 years of technical accumulation and project experience, can provide users with full-cycle services for LED Sphere Displays from "demand analysis" to "later maintenance", solving your problems in selection, installation, and use.
1. Early Stage: Customized Demand Analysis and Scheme Design
The professional team of Apexls will first have an in-depth understanding of your usage scenario (indoor/outdoor, space size), viewing distance, content requirements (video/graphics and text), and budget range. Combined with on-site survey data (such as the light intensity, temperature, and wind speed of the outdoor environment, and the floor height and load-bearing capacity of the indoor space), a customized LED Sphere Display scheme will be provided for you.
The scheme will clearly recommend core parameters such as size, pixel pitch, protection level, and heat dissipation system, and provide 3D renderings to allow you to intuitively understand the final presentation effect. At the same time, Apexls will also compare the costs and performances of different configurations to provide you with cost-effective selection suggestions.
2. Middle Stage: High-Quality Production and Professional Installation

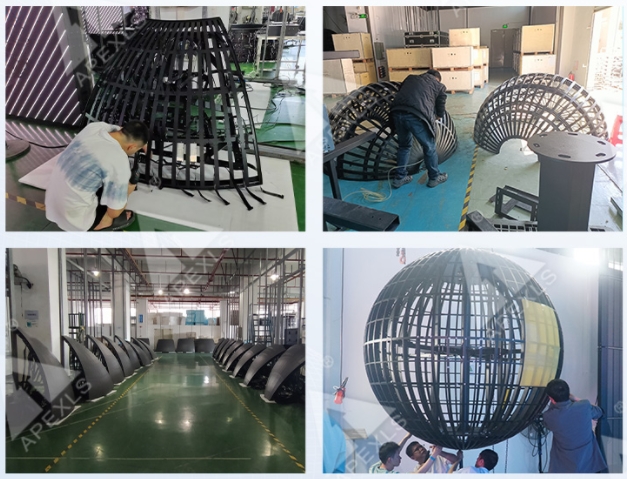

Production Link: Apexls uses imported LED lamp beads (such as Epistar and San'an) and high-quality modules to ensure uniform screen brightness and good color consistency. At the same time, each module undergoes a strict aging test (for more than 72 hours) to avoid factory failures. For outdoor Sphere Displays, the frame is made of corrosion-resistant and high-strength aluminum alloy or stainless steel, and the protection level is strictly implemented in accordance with the IP65/IP66 standard.
Installation Link: Apexls has a professional installation team equipped with large hoisting equipment, scaffolding, and other tools, and formulates a safe construction plan according to on-site conditions (such as safety protection for outdoor high-altitude operations and indoor load-bearing reinforcement measures). After the installation is completed, a comprehensive commissioning (such as brightness calibration, color correction, and signal testing) will be carried out to ensure stable screen display and clear images.
3. Later Stage: Complete Warranty and Maintenance Services
Warranty Service: Apexls provides a 2-3 year free warranty for LED Sphere Displays (covering core components such as lamp beads, modules, and control systems). If there is a quality problem within the warranty period, on-site repair or component replacement will be provided free of charge.
Maintenance Service: After the warranty period, Apexls can provide lifelong maintenance services, including regular on-site screen cleaning, inspection of heat dissipation and power supply systems, and timely troubleshooting. At the same time, Apexls also provides remote technical support. In case of minor failures, they can be quickly solved through remote assistance to reduce downtime.
In addition, Apexls also supports "customized content customization" services. According to your brand image and event theme, it can design exclusive dynamic images and interactive programs for the LED Sphere Display to further enhance the display effect and user experience.
Whether it is for commercial marketing, cultural tourism display, or corporate office, LED Sphere Displays can empower your scenarios with their unique visual advantages. If you are considering introducing an LED Sphere Display, you may contact Apexls and let the professional team provide you with a one-stop solution, making you worry-free, assured, and confident.
