Outdoor KPH Series LED Display
High brightness · Energy saving · Dynamic display
The Outdoor KPH Series Dynamic Energy-saving High brightness LED display realizes ultra-slim & light-weight, super-bright but energy-saving, fast & seamless installation designs, brings vivid colors with excellent quality for the immersive entertainment & advertising industry.

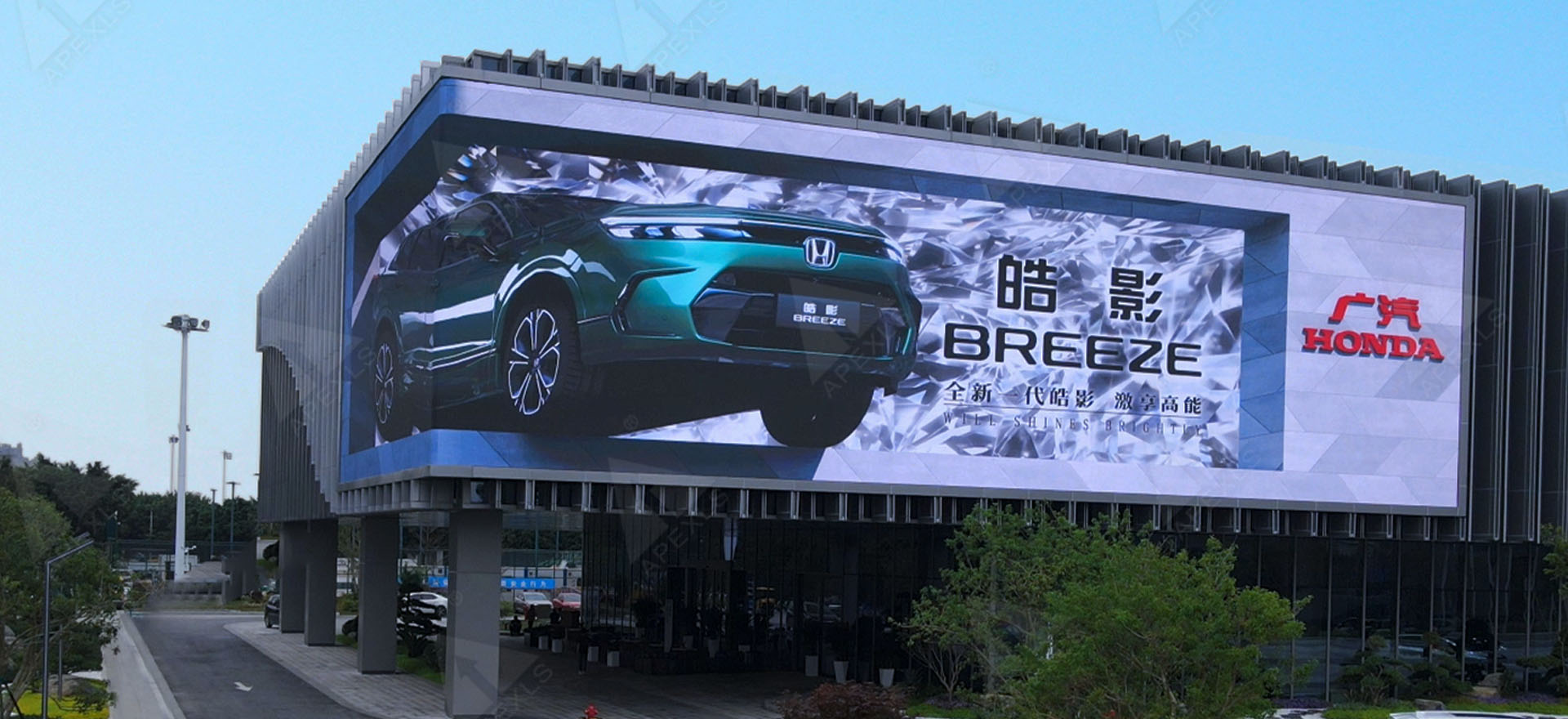

Application: Outdoor billboard, Shopping mall, Commercial complex, Parking area, Theme park, Sports stadium , Playground, Entertainment venue facade, etc.

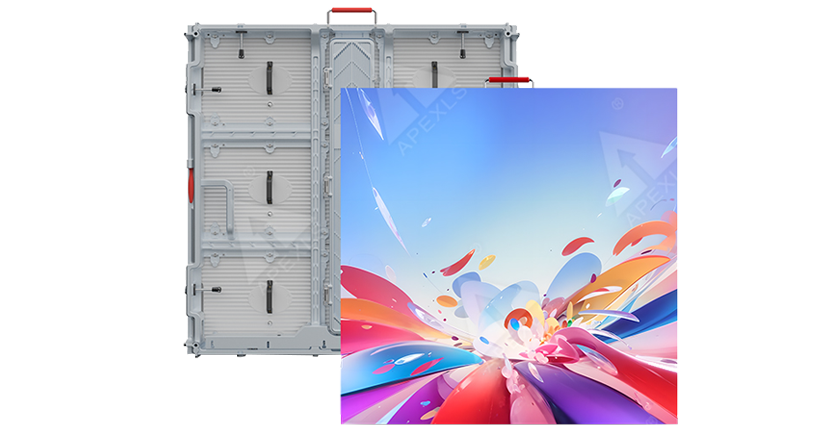

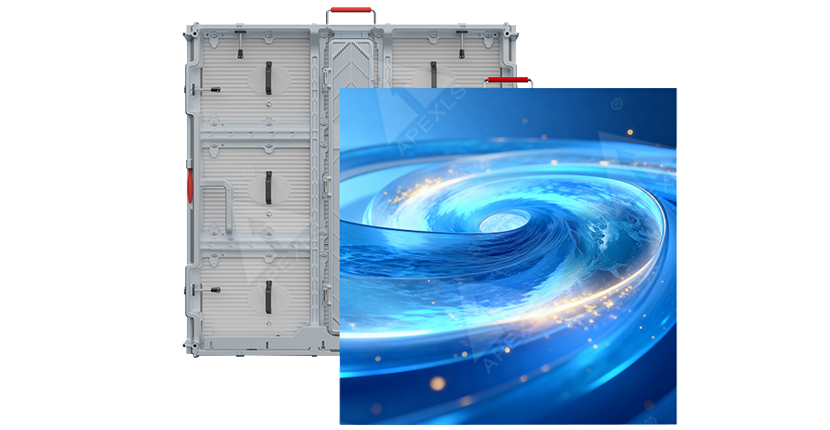

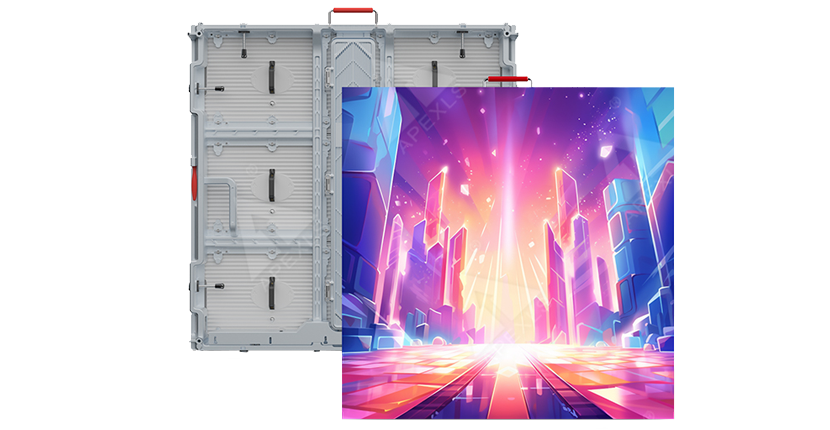

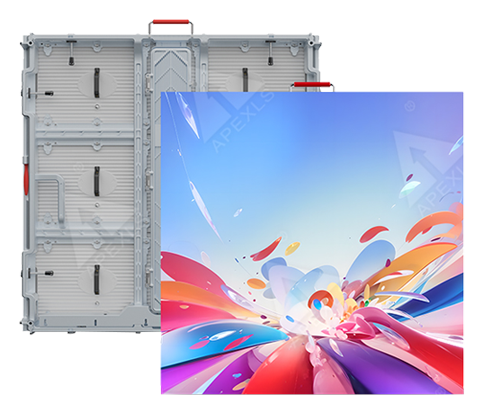

Higher brightness & refresh rate & grayscale performance: 6000+nits brightness supports the display of gorgeous images under any lighting conditions without being restricted by the environment. Use "dynamic" allocation of precise driving voltages for red, green, and blue, allowing the red tube to obtain 2.8V and the blue and green tubes to obtain 3.8V.. It adopts dual voltage output. Compared with other 5V inputs, the power consumption is significantly reduced by 30%.

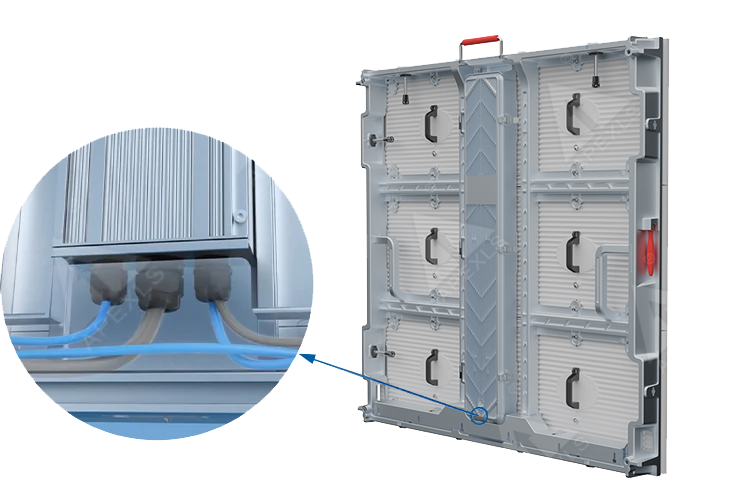

Plasic shell module, excellent heat dissipation, module wireless hard connection, higher connection stability, high-quality raw material supply, and rigorous high & low temperature testing ensure that the product is long-lasting & stable. Cabinet thickness: 90mm, Cabinet size: 960x960mm, Cabinet weight 27kg/pc.

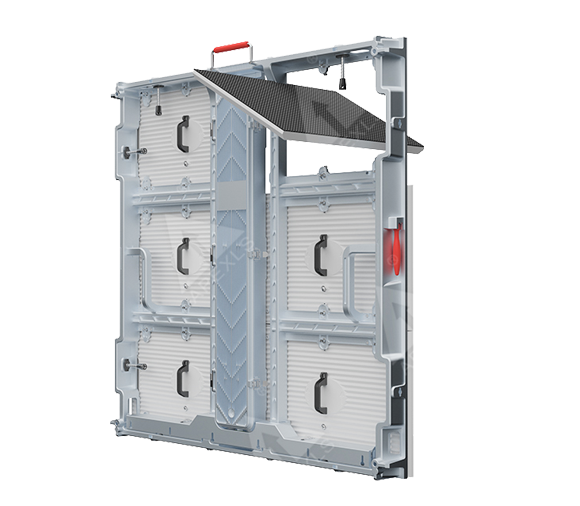

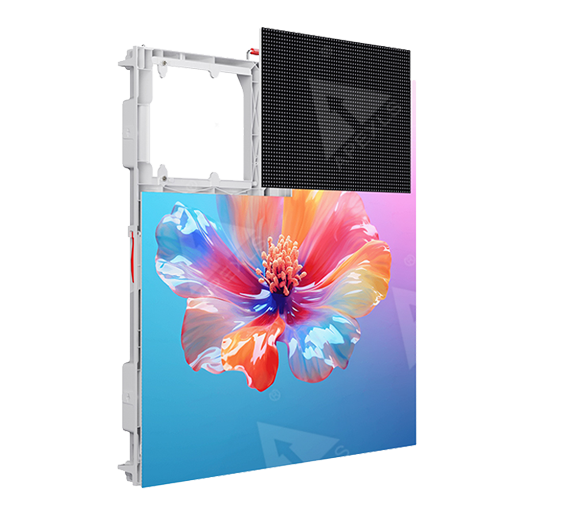

Both Modules & PSU's Front-Rear service design can meet any project-site needs, and save some extra maintenance costs if any

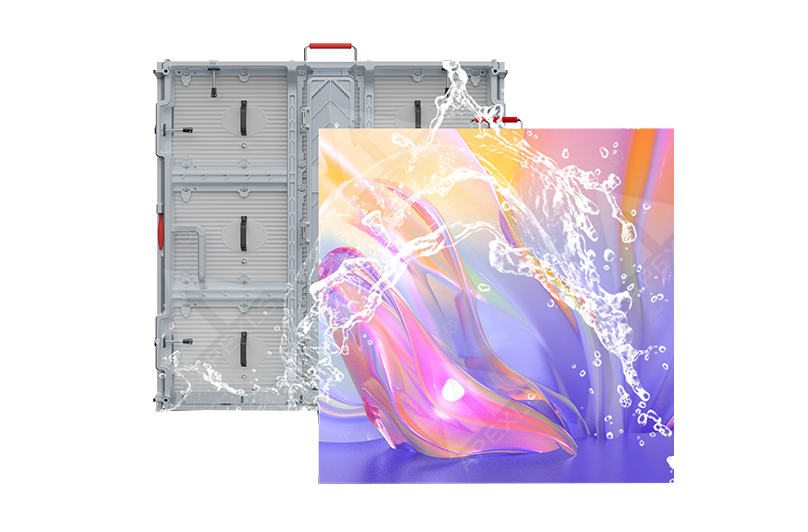

Plasic shell module, die-casting fully enclosed power box, double-layer waterproof pin header rubber ring, high waterproof grade IP65+, high fire protection grade 5VB, EMC-Class B test certification.
| Model | P4 | P6.67 | P8 | P10 | |
| Pixel Pitch(mm) | 4 | 6.67 | 8 | 10 | |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| LED Type | SMD1820 | SMD1820 | SMD1820 | SMD2727 | |
| Pixel Density(dots/m²) | 62,500 | 22,500 | 15,625 | 10,000 | |

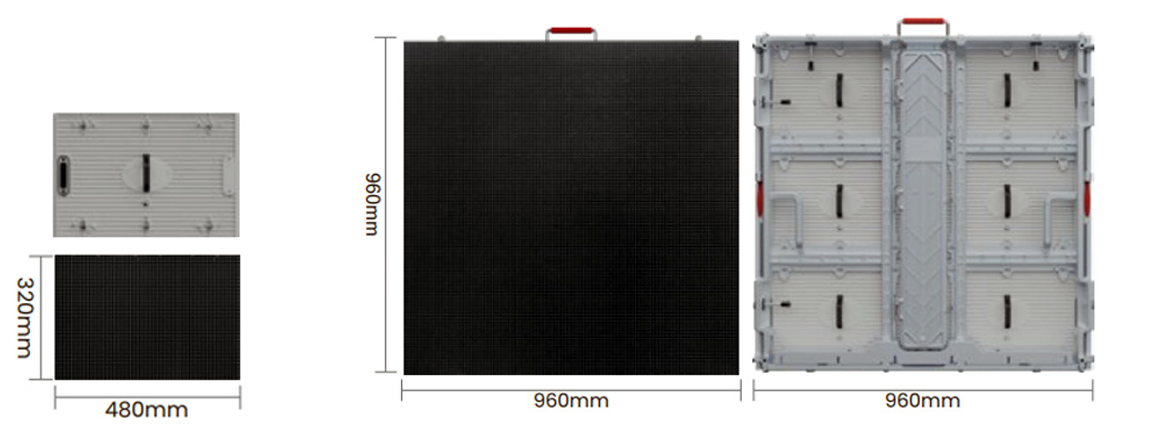

| Module Size(mm) | 480x320 | 480x320 | 480x320 | 480x320 | |
| Module Resolution(dots) | 120x80 | 72x48 | 60x40 | 48x32 | |
| Cabinet Size(mm) | 960x960x90 | 960x960x90 | 960x960x90 | 960x960x90 | |
| Cabinet Resolution(dots) | 240x240 | 144x144 | 120x120 | 96x96 | |
| Cabinet Material | Die-casting aluminum | ||||
| Cabinet weight(kg) | 27 | 27 | 27 | 27 | |
| Brightness(cd/m²) | 5,500 | 6,000 | 6,000 | 6,000 | |
| Power Avg.(W/m²) | 165 | 158 | 158 | 158 | |
| Power Max.(W/m²) | 620 | 600 | 600 | 600 | |
| Scan Rate | 1/10 | 1/4 | 1/3 | 1/2 | |
| Refresh Rate(Hz) | 3840~7,680 | ||||
| Gray Scale(bit) | 14~16 | ||||
| IP Grade | Front: IP65 & Rear: IP54 | ||||
| Installation/Maintenance | Front & Rear | ||||
| Certification | CE, ETL, FCC, RoHS | ||||
