Indoor & Outdoor Led Sphere
Customizable Diameter & Pixel Pitch

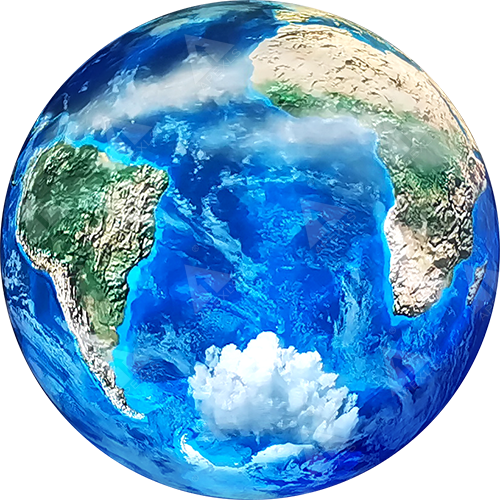

Led sphere display (also known as led ball display, or globe led screen), is a new design and creative type of led screen products. It is shaped as a ball and provides a 360 degree view effect, presenting images and videos without any image distortion. It is different from conventional led displays and more attractive with its unique 360 degree spherical appearance.
Museum, planetarium, science and technology museum, children's palace, exhibition hall, gymnasium, terminal hall, star hotels, large open-air places, railway stations, ports, shopping malls, bars, stages，meeting rooms
With unique appearance design and strong visual effect, led sphere is very eye-catching. Due to its unique design, it stands out among various common led displays.
Pixel pitch and diameter are customizable. Hemispheres, incomplete balls, telescopic balls, various installation methods are optional. And the most complete models have been done: diameters from 0.35m to 17m, pixel pitch from P1.875mm to P10mm, can meet your different needs.
Special shape, more attractive to the audience, strong visual impact, good eye absorption, high color uniformity, clear image, can bring you vivid audiovisual effects.
Seamless jointing between each module with trapezoid shape design, ensure the high uniformity of the surface.
Simple & easy installation
Using simple and intelligent installation support, the installation of led sphere is very easy. It supports floor standing, hoisting and wall embedded installation ways. Full front maintenance is available.

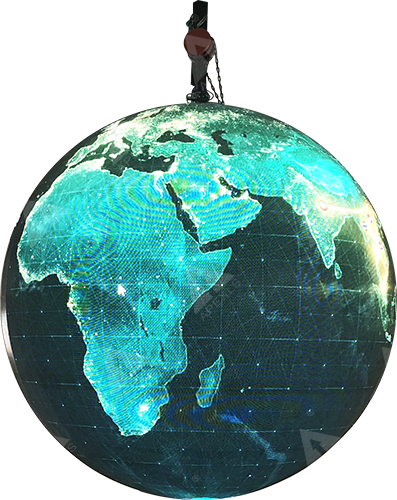

hoisting

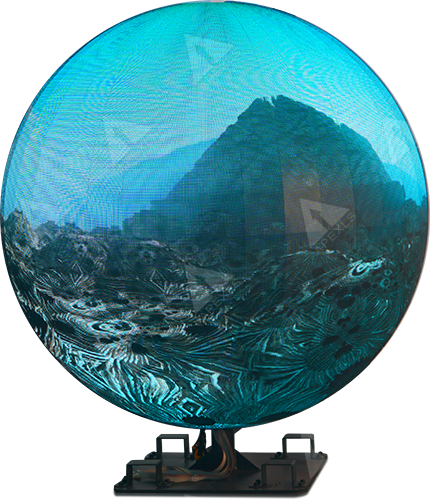

floor standing
| Indoor | Outdoor | ||||||||||
| Model | P1.8 | P2 | P2.5 | P3 | P4 | Model | P4.8 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 1.875 | 2 | 2.5 | 3 | 4 | Pixel Pitch(mm) | 4.8 | 5 | 6 | 8 | 10 |
| Diameter(m) | 15, 2.5 | 1.5, 1.6, 2 | 1, 1.2, 1.5, 2 | 1.2, 1.5, 1.6 1.8, 2, 2.6, 3 |
1，1.5，1.8 2，3，4，5 |
Diameter(m) | 4 | 2.5 | 2，3 | 5 | 2，6，8,11 |
| LED Type | SMD1212 | SMD1212/1515 | SMD1515 | SMD1515 | SMD2121 | LED Type | SMD1515 | SMD1515 | SMD1921 | SMD2727 | SMD3535 |
| Pixel Density(dots/m2) | 284445 | 250000 | 160000 | 111111 | 62500 | Pixel Density(dots/m2) | 43402 | 40000 | 27777 | 15625 | 10000 |
| Brightness(cd/m2) | 1000 | 1000 | 1000 | 1000 | 1200 | Brightness(cd/m2) | 5000 | 5000 | 5000 | 5000 | 7500 |
| Avg Power Consumption(W/m2) | 160 | 160 | 150 | 150 | 150 | Avg Power Consumption(W/m2) | 400 | 400 | 350 | 260 | 450 |
| Max Power Consumption(W/m2) | 480 | 480 | 450 | 450 | 450 | Max Power Consumption(W/m2) | 1000 | 1000 | 800 | 650 | 1100 |
| Refresh Rate(Hz) | 1,920-3,840 | Refresh Rate(Hz) | 1,920-3,840 | ||||||||
| Input Voltage | AC100-240V/50-60Hz | Input Voltage | AC100-240V/50-60Hz | ||||||||
| Life Span | 100,000 hours | Life Span | 100,000 hours | ||||||||
| Working Temperature | -20°C～60°C | Working Temperature | -20°C～60°C | ||||||||
| Working Humidity(RH) | 10%～90% | Working Humidity(RH) | 10%～90% | ||||||||
| Gray Scale | 12-16 bit | Gray Scale | 12-16 bit | ||||||||
