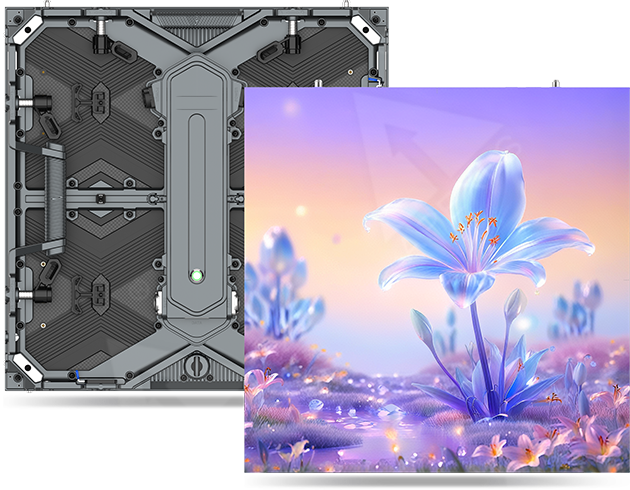

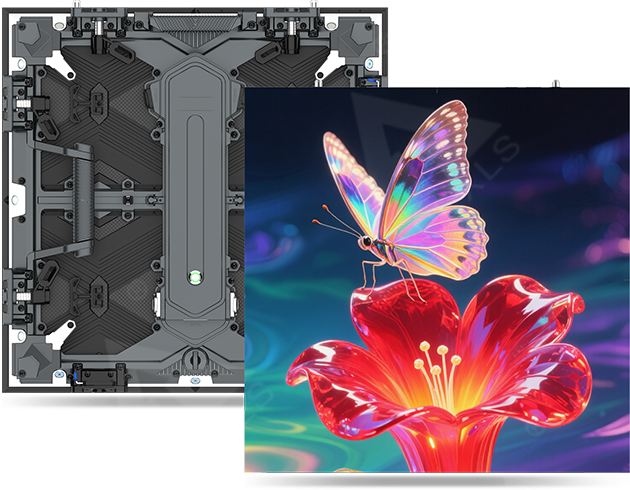

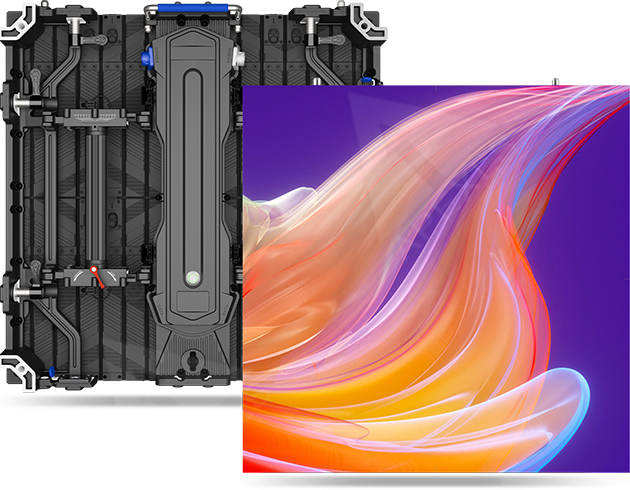

KG Series Rental LED Display
Light · Slim · Fast · Save · Compatible

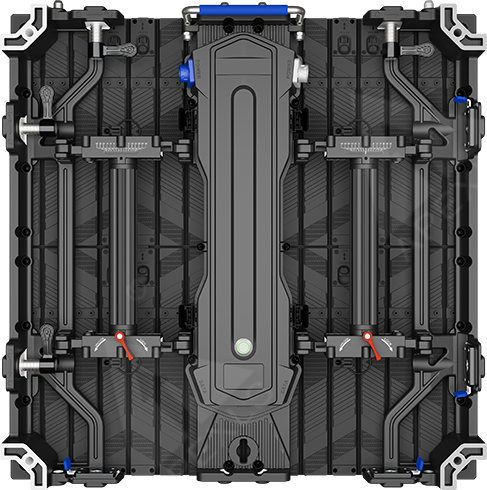

KG series is a new generation of Apexls Rental Led Display, It adopts the concept of lightweight design, modular design of controller, module and PSUs, For easy installation and Maintenance. 500*500mm,,1000x1000mm cabinet has high flexibility, convenient to create all kinds of stage applications. New generation KG serial has all the necessary processes for rental led displays, including full-view Led mask, backup power current sharing, anti-collision PCB, etc. It can be widely used in concerts, TV shows, large-scale entertainment programs, commercial exhibitions, etc.
Widely used in concerts, TV shows, large-scale entertainment programs, commercial exhibitions, and other venues

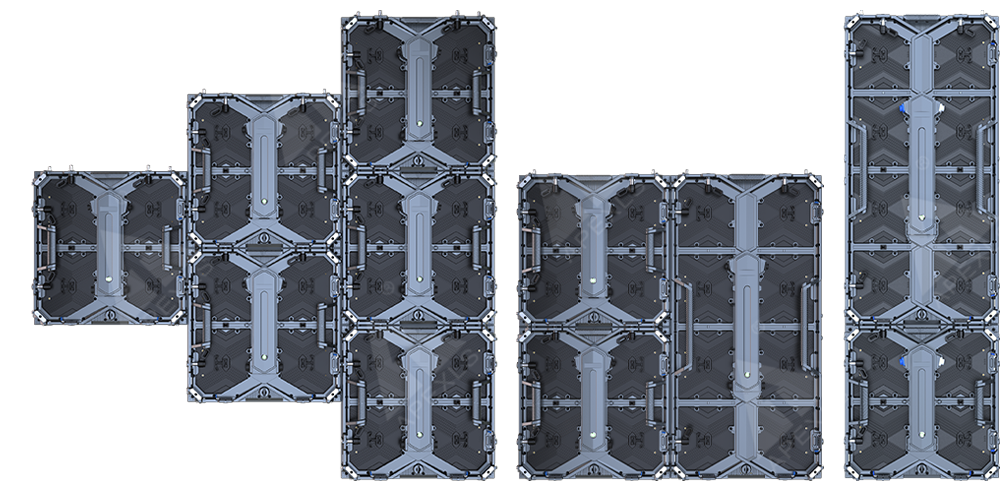

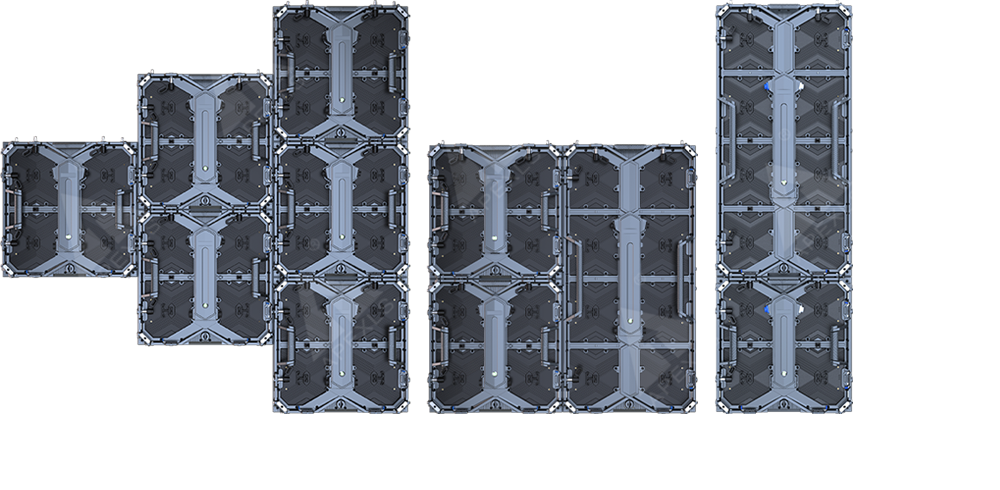

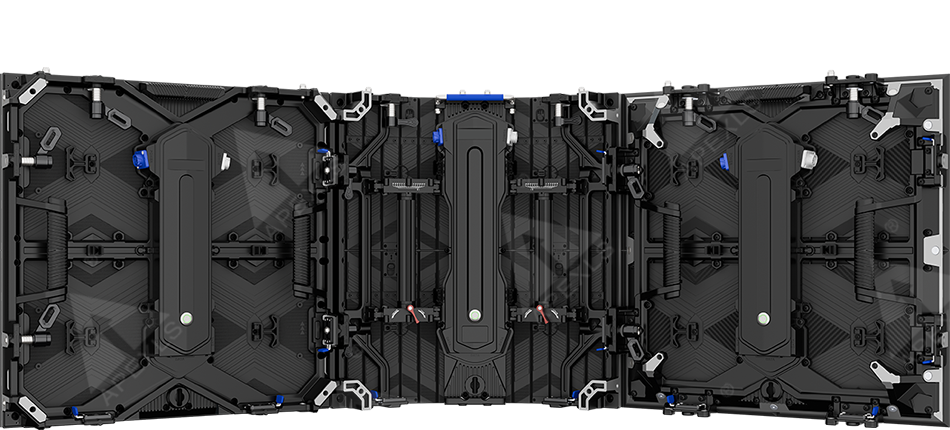

Cabinet Malposed Splicing: Left & Right; Up & Down. Cabinet Large & Small Splicing: Left & Right; Up & Down. Conventional cabinet, cutting angle cabinet, and curved cabinet canbe spliced together.

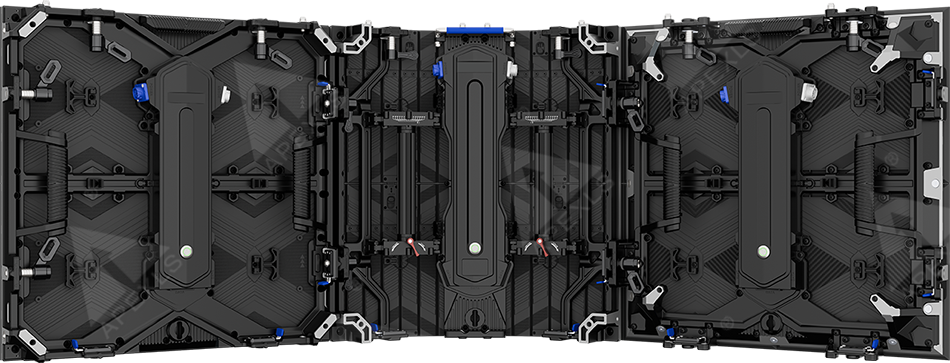

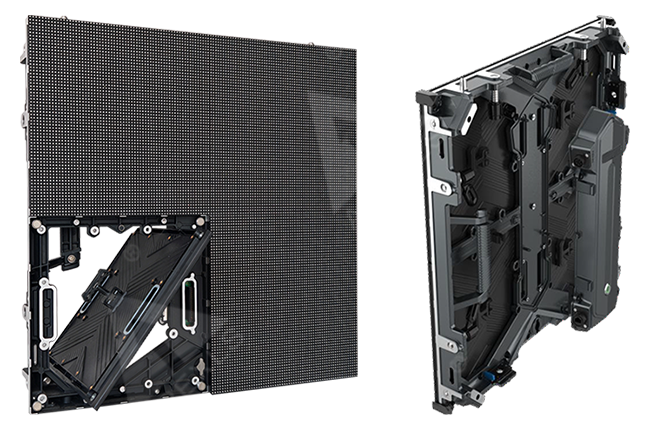

The rear maintenance operation is simple, allowing for quick mainte-nance and can replace an entire power box, saving maintenance time.
500x500mm Cabinet weight: 6.2kg pc, Cabinet thickness: 69mm. 500x1000mm Cabinet weight: 11.2kg/pc, Cabinet thickness: 69mm
90 ,Right-angle, Creative cube, cylinder Display.
| Operating environment | Indoor | Outdoor | |||||
| Model | P1.95 | P2.6 | P2.97 | P3.91 | P2.97 | P3.91 | P4.81 |
| Pixel pitch(mm) | 1.953 | 2.604 | 2.976 | 3.91 | 2.976 | 3.91 | 4.81 |
| LED type | SMD1212 | SMD1212 | SMD1515 | SMD2121 | SMD1415 | SMD1921 | SMD1921 |
| Pixel density (dots/m²) | 262,144 | 147,456 | 112,896 | 65,536 | 112,896 | 65,536 | 43,263 |
| Scan mode | 1/32 | 1/24 | 1/21 | 1/16 | 1/21 | 1/16 | 1/13 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module resolution(dots) | 128x128 | 96x96 | 84x84 | 64x64 | 84x84 | 64x64 | 52x52 |
| Cabinet size(mm) | 500X500x69 | 500X500x69 500X1000x69 |
500X500x70 / 500X1000x70 | ||||
| Cabinet weight(kg/pc) | 6.2/11.2 | 6.5/11.8 | |||||
| Cabinet material | Die-casting Aluminum | Die-casting Aluminum | |||||
| Service | Rear Maintenance | Rear Maintenance | |||||
| Brightness(cd/m²) | 600-800 | 3500-3800 | |||||
| Refresh rate (Hz) | 3840-7680 | 3840-7680 | |||||
| Gray scale (bit) | 14-16 | 14-16 | |||||
| Avg. Power(W/m²) | 180 | 250 | |||||
| Max. Power(W/m²) | 580 | 720 | |||||
| Protection Rating | IP30 | Front: IP65; Rear: IP54 | |||||
| Radian | -7.5°~+10° | -7.5°~+10° | |||||
| Viewing angle(°) | 160°/160° | 160°/160° | |||||
| Contrast | 6000:1 | 3000:1 | |||||
| Life time(hours) | 100,000 | 100,000 | |||||
| Operating temperature(℃) | -10℃~+45℃ | -10℃~+45℃ | |||||
| Operating humidity(RH) | 10~80%RH | 10~80%RH | |||||
